Alu-H-A Eye
Hook 9690
Product number: 1169
Alu-H-A Eye is a scaffold hook in aluminum for connection to larger objects.
ANSI and EN standard
Breaking strength 28kN
Big opening
Obligatory fields are indicated with asterisk
ANSI and EN standard
Breaking strength 28kN
Big opening
Reference |
Article name |
Colors |
GTIN |
Country of origin |
|---|---|---|---|---|

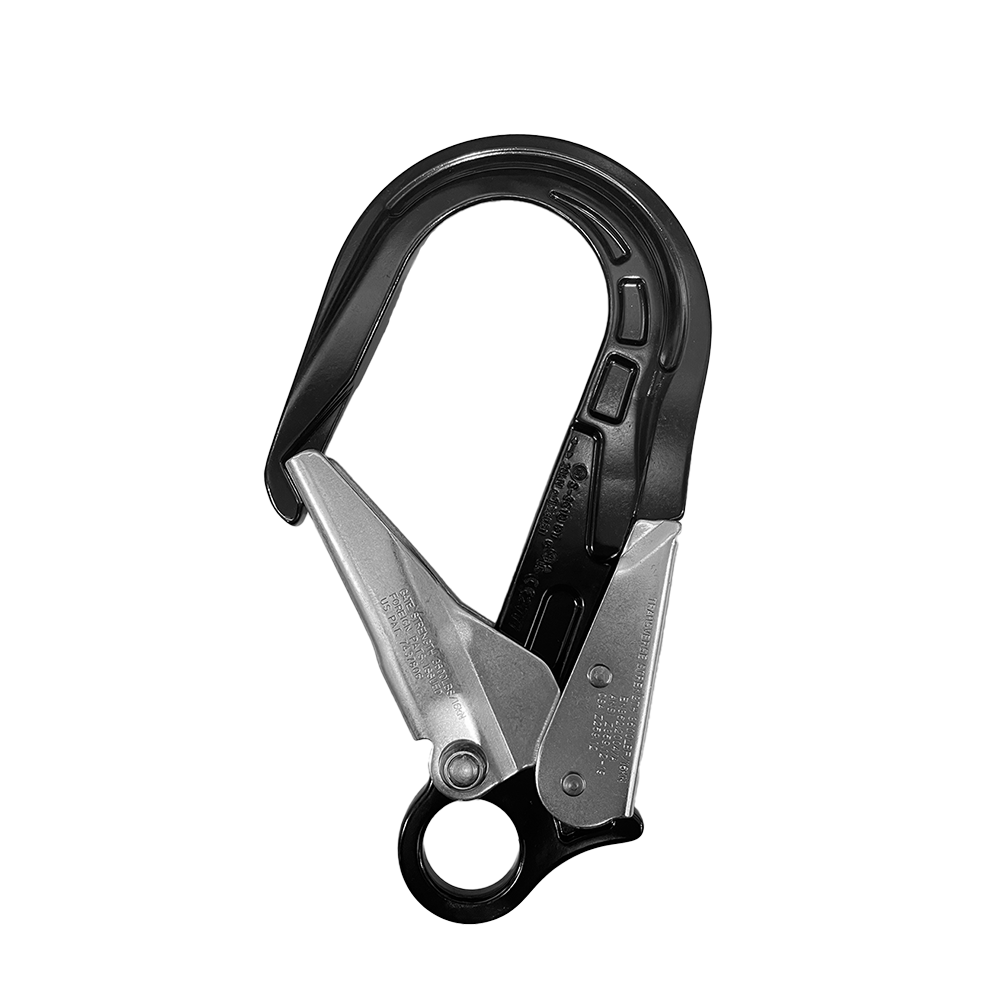

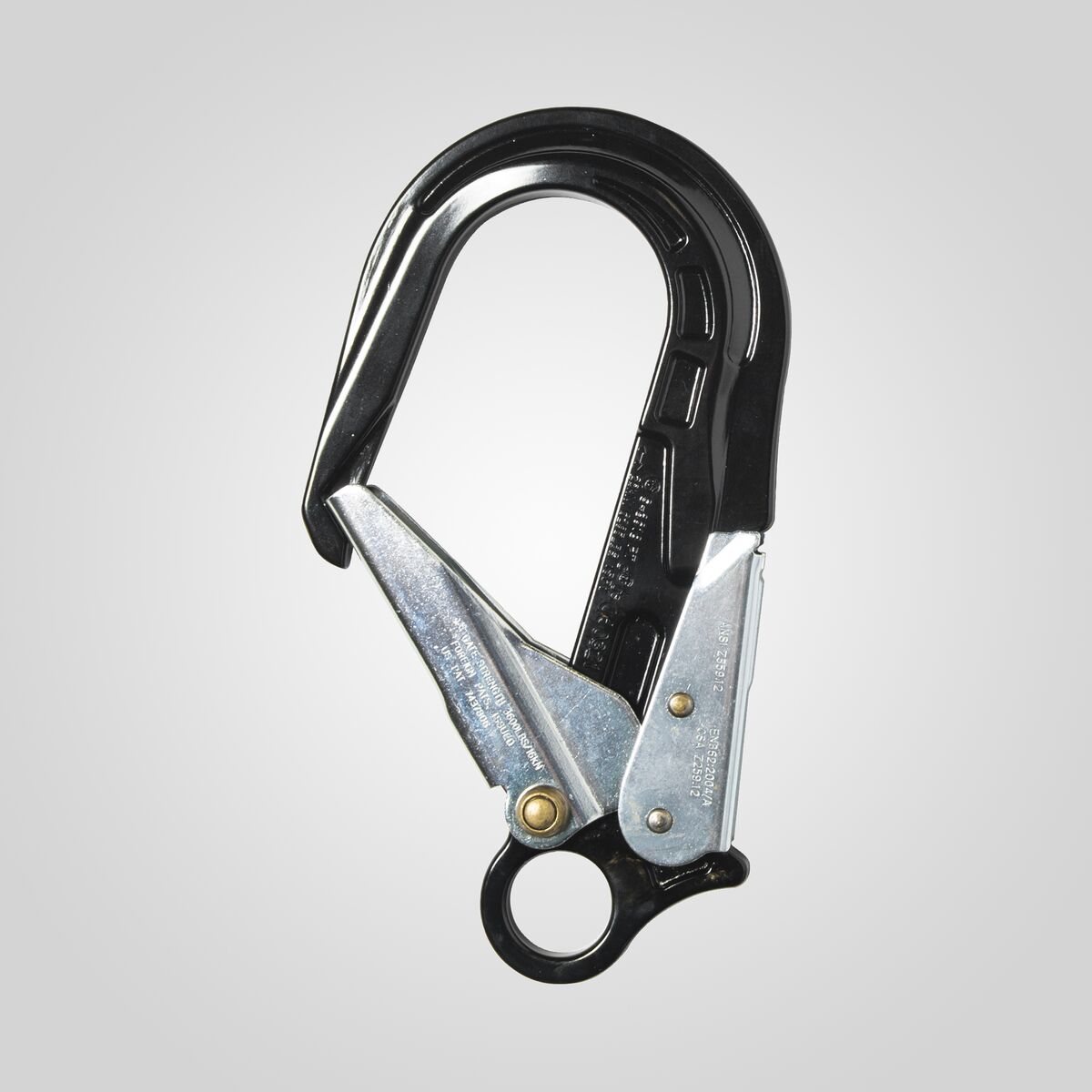

| 012250073 | Cresto, Alu-H-A Eye, black | BLACK | 7350015797239 | Taiwan |

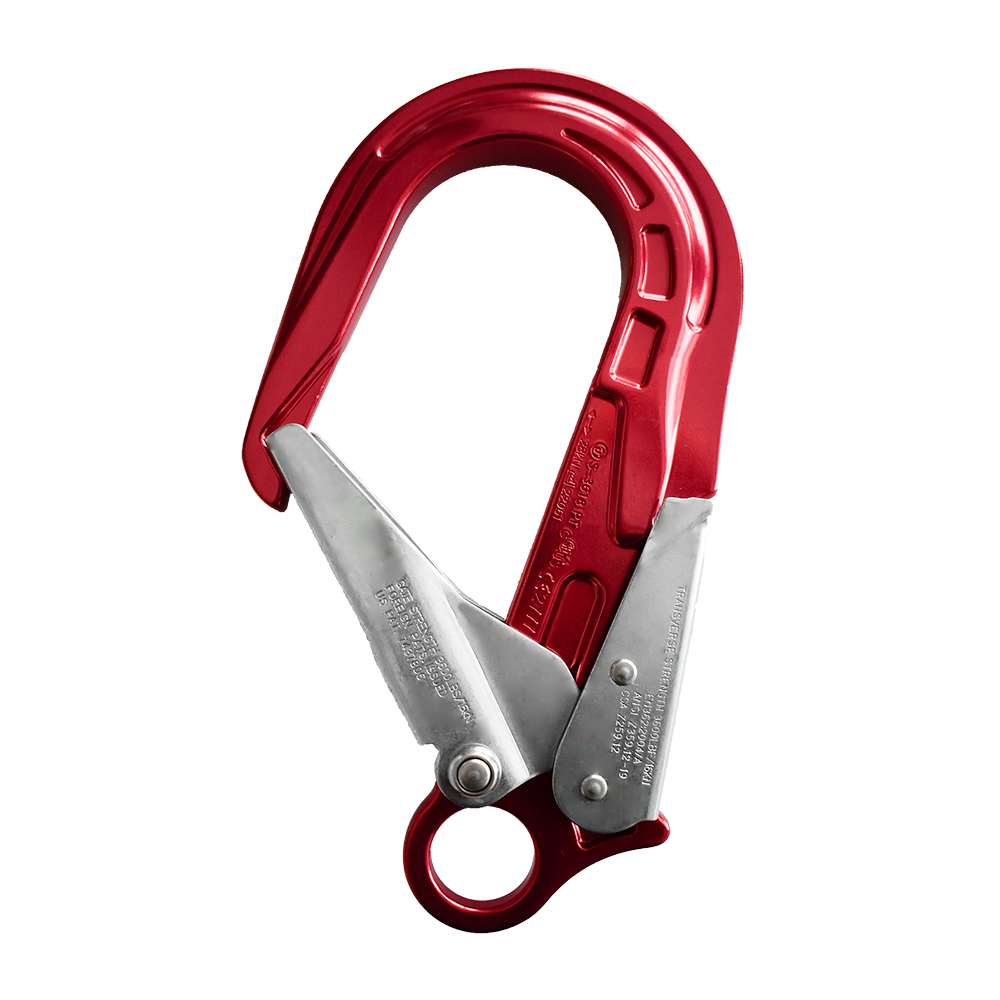

| 012250074 | Cresto, Alu-H-A Eye, red | RED | 7350015797246 | Taiwan |
Product properties |
|
|---|---|
| Brand: | Usang |
| Material: | Aluminum |
| EN-standard: | EN 362 : 2004 |
| Other standards: | ANSI Z359.1 |
| Notified body: | 2777, SATRA Technology Europe Limited, Bracetown Business Park Clonee, D15 YN2P, Ireland |
| Annual inspection: | Yes, every 12 months |
| RFID: | No |
| Warranty: | 2 year |
| Declaration of Conformity: | Yes |
| Fall indicator: | No |
| Minimum breaking strength - MBS (kN): | 28 |
| Energy absorber: | No |
| Gate feature: | 2-way |
| Gate opening (mm): | 64 |
| Gate strength (kN): | 16 |
| Adjustable under load: | No |
