Cresto Safety

RED PRO X Extended

Rescue and evacuation device, box

Product number: 4351

The latest generation automatic evacuation and rescue device with superior properties.

Extremely good lifting capacity

Water sealed brake housing

Intuitive and easy to use

Standards
EN 341 : 2011
EN 1496 : 2017
ANSI Z359.4-2013
CSA Z259.2.3-12

Quantity:

Find reseller

Product description

RESQ RPX is the latest generation of rescue and evacuation equipment from RESQ – designed and developed for easy use with intuitive functions.
The RPX can handle most rescue scenarios in various industries and extreme environments, from evacuation from high heights, lifting from deep shafts to advanced rescues, the height worker can feel confident that the equipment performance is verified.

The design and functionality of the device are based on insights from professionals working at heights daily. RPX is designed to give height workers verified confidence in extreme environments and for easy implementation of user-training and inspections.

Single-sided use for safe handling - all features on frontside - no more losing valuable time, twisting and turning the device to double-check. Universal power tool-interface for heavy lifting, up to 255m. Top-mounted swivel for optimal positioning, even in tight conditions and confined space. Laser printed, easy to read data and pictograms, engraved direct and permanently on the body. 280 kg – 255m verified and tested decent weight and height!

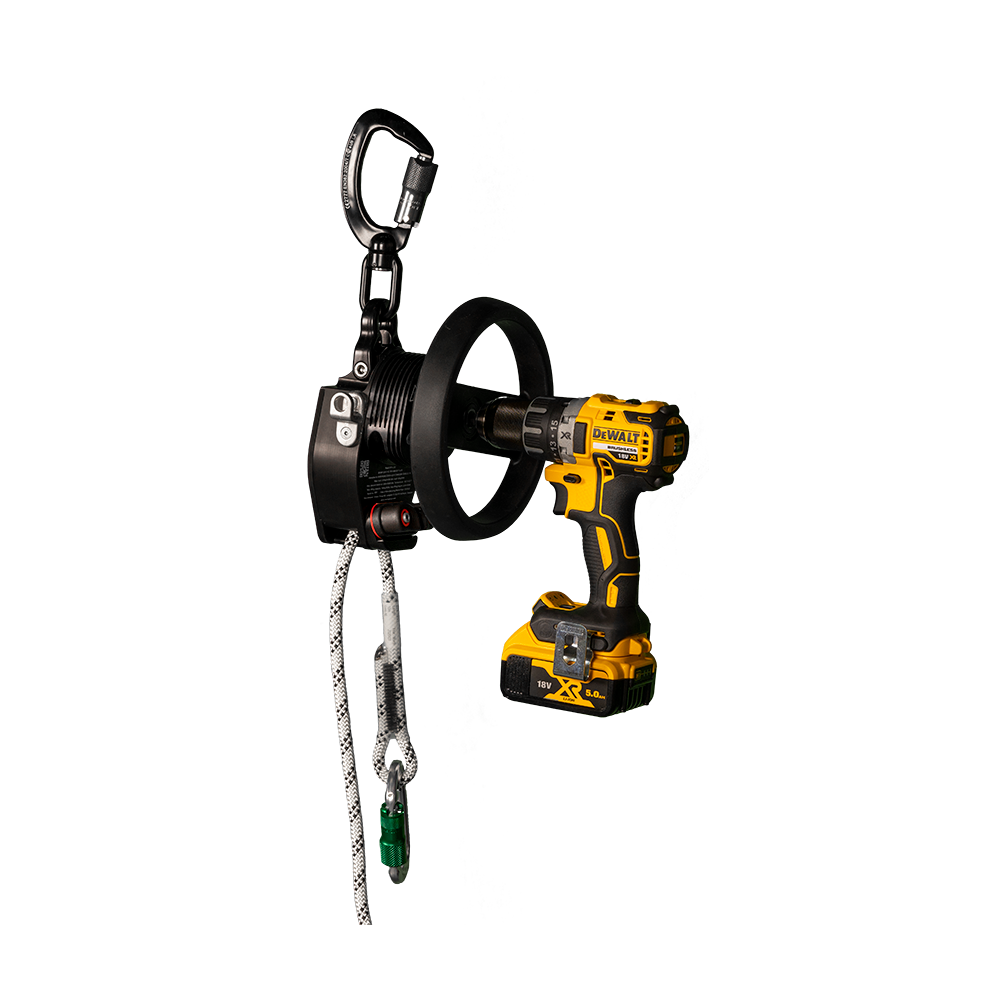

The device comes with a lifting function where the connection of machine-driven accessories simplifies and facilitates lifting at longer distances as standard. With the help of a power tool, the equipment can lift a load of 140 kg at a distance of 255 meters.

RPX requires a minimum of training which equals Low TCO for maintenance of training certificates for your workforce. Due to the easily recognizable and intuitive design on both rescue equipment and accessories, the kit is both practical and cost-efficient to introduce to an already trained workforce which holds GWO or similar height training certificate.

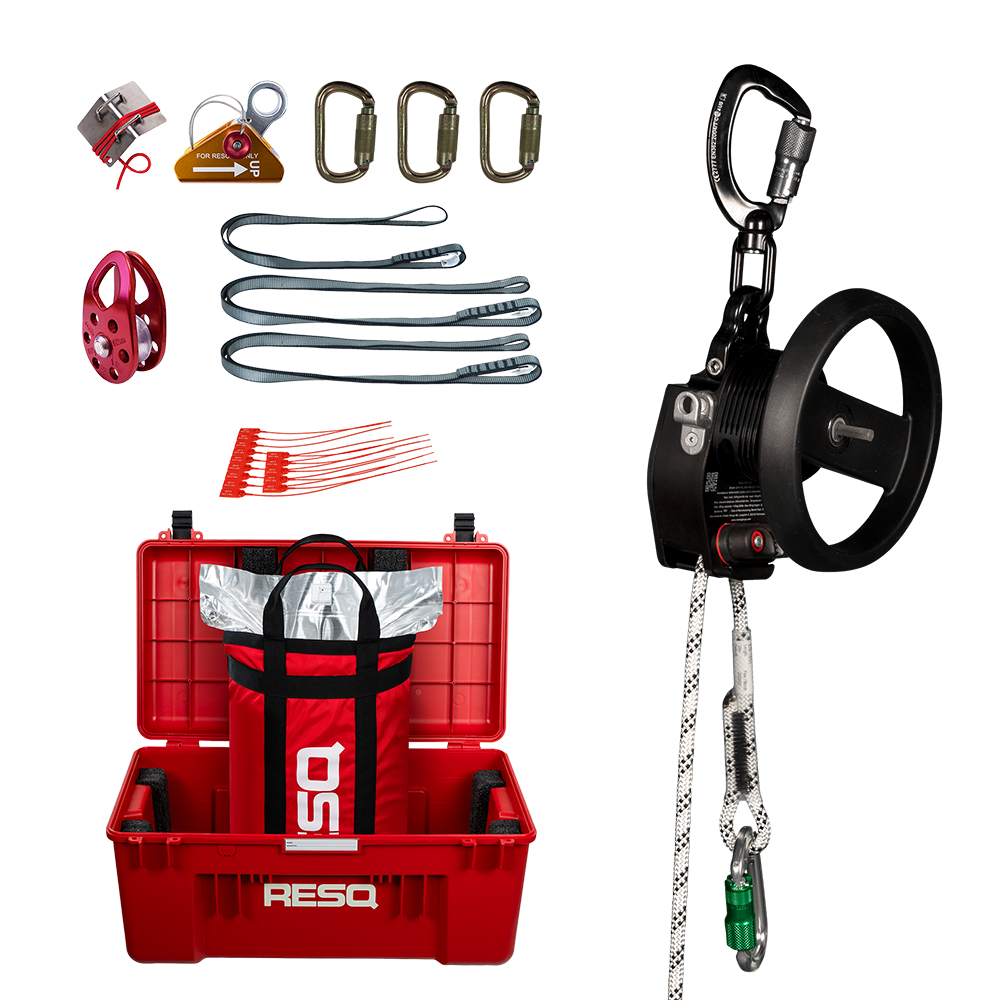

RPX Extended is delivered as a complete set in RESQ Vacuum+ (service interval of 15 years), storage box in plastic and accessory kit.

Material shortages due to the pandemic have resulted in the need for Cresto Group to periodically and temporarily replace certain components on our products with replacement components fulfilling the same function. Due to this, the product images may differ from that which is delivered.

Items

Reference
Article name
Size (m)
Colors
GTIN
Country of origin
087003312050 RESQ, RPX200 Extended, 50m, box, Vacuum+, accs. 50 BLACK 7350015799080 Slovakia
087003312075 RESQ, RPX200 Extended, 75m, box, Vacuum+, accs. 75 BLACK 7350015799097 Slovakia
087003312083 RESQ, RPX200 Extended, 83m, box, Vacuum+, accs. 83 BLACK 7350015799462 Slovakia
087003312090 RESQ, RPX200 Extended, 90m, box, Vacuum+, accs. 90 BLACK 7350015799479 Slovakia
087003312100 RESQ, RPX200 Extended, 100m, box, Vacuum+, accs. 100 BLACK 7350015799103 Slovakia
087003312105 RESQ, RPX200 Extended, 105m, box, Vacuum+, accs. 105 BLACK 7350015799486 Slovakia
087003312125 RESQ, RPX200 Extended, 125m, box, Vacuum+, accs. 125 BLACK 7350015799110 Slovakia
087003312140 RESQ, RPX200 Extended, 140m, box, Vacuum+, accs. 140 BLACK 7350015799493 Slovakia
087003312150 RESQ, RPX200 Extended, 150m, box, Vacuum+, accs. 150 BLACK 7350015799127 Slovakia
087003323160 RESQ, RPX200 Extended, 160m, box, Vacuum+, accs. 160 BLACK 7350015799509 Slovakia
087003323175 RESQ, RPX200 Extended, 175m, box, Vacuum+, accs. 175 BLACK 7350015799134 Slovakia
087003323180 RESQ, RPX200 Extended, 180m, box, Vacuum+, accs. 180 BLACK 7350015799516 Slovakia
087003323200 RESQ, RPX200 Extended, 200m, box, Vacuum+, accs. 200 BLACK 7350015799141 Slovakia

Technical data

Product properties
ProductMinMaxStorageTemperature: -40/+60 °C
Brand: RESQ
Material: Polyamide, Aluminum , Techno polymers
Min/Max load (kg): 40/280
Minimum load (kg): 40
Maximum load (kg): 200
Maximum number of users: 2
Min/Max working temperature (c): -40/+60 °C
EN-standard: EN 341 : 2011, EN 1496 : 2017
Other standards: ANSI Z359.4-2013, CSA Z259.2.3-12
Notified body: 0200, FORCE Certification A/S, Main office, Park Allé 345, DK-2605 Brondby, Denmark
Annual inspection: Yes, every 12 months
Life span: 15 + 15 years. Product lifecycle 15 years + 15 after service
RFID: Yes
Warranty: 2 year
Declaration of Conformity: Yes
Rope: Polyamide/polyamide 32-braided kernmantel construction 9,6mm
Maximum rope length (m): 255
Fall indicator: No
Maximum descent: 255m
Descent speed (m/s): 0,9-1,6
Minimum breaking strength - MBS (kN): 20
Energy absorber: No
Gate feature: twist lock
Gate strength (kN): 16
Attaching connector 1: Device: Aluminum carabiner with swivel
Attaching connector 2: Rope: Aluminum carabiner
Functions: Descend function, Lifting function
Extra functions: Lift with external power source
Mechanics: Centrifugal brake
Lifting mechanics: Gear, ratio 1:9
Adjustable under load: Yes

Product attachments

  • 4351_RED_PRO_X_Extended_en.pdf
  • 4351_RED_PRO_X_Extended_no.pdf
  • 4351_RED_PRO_X_Extended_sv.pdf
  • RED Pro X and ED Pro - EU 20200311.pdf
  • RESQ Vacuum solutions - version 2.pdf
  • RESQ Vacuum solutions - version 3.pdf
  • RESQ Vacuum solutions - version 5.pdf
  • RESQ Vacuum solutions - version 6.pdf
  • RPX200 & EPX200 - EU 20220421.pdf
  • RPX200 & EPX200 - version 1.pdf
  • RPX200 & EPX200 - version 2.pdf
RESQ RPX is the latest generation of rescue and evacuation equipment from RESQ – designed and developed for easy use with intuitive functions.
The RPX can handle most rescue scenarios in various industries and extreme environments, from evacuation from high heights, lifting from deep shafts to advanced rescues, the height worker can feel confident that the equipment performance is verified.

The design and functionality of the device are based on insights from professionals working at heights daily. RPX is designed to give height workers verified confidence in extreme environments and for easy implementation of user-training and inspections.

Single-sided use for safe handling - all features on frontside - no more losing valuable time, twisting and turning the device to double-check. Universal power tool-interface for heavy lifting, up to 255m. Top-mounted swivel for optimal positioning, even in tight conditions and confined space. Laser printed, easy to read data and pictograms, engraved direct and permanently on the body. 280 kg – 255m verified and tested decent weight and height!

The device comes with a lifting function where the connection of machine-driven accessories simplifies and facilitates lifting at longer distances as standard. With the help of a power tool, the equipment can lift a load of 140 kg at a distance of 255 meters.

RPX requires a minimum of training which equals Low TCO for maintenance of training certificates for your workforce. Due to the easily recognizable and intuitive design on both rescue equipment and accessories, the kit is both practical and cost-efficient to introduce to an already trained workforce which holds GWO or similar height training certificate.

RPX Extended is delivered as a complete set in RESQ Vacuum+ (service interval of 15 years), storage box in plastic and accessory kit.

Material shortages due to the pandemic have resulted in the need for Cresto Group to periodically and temporarily replace certain components on our products with replacement components fulfilling the same function. Due to this, the product images may differ from that which is delivered.
