Cresto Safety

RED PRO X Original

Rescue and evacuation device, box

Product number: 2565

The latest generation automatic evacuation and rescue device with superior properties.

Extremely good lifting capacity

Water sealed brake housing

Intuitive and easy to use

Standards
EN 341 : 2011
EN 1496 : 2017
ANSI Z359.4-2013
CSA Z259.2.3-12

Quantity:

Find reseller

Product description

RESQ RPX is the latest generation of rescue and evacuation equipment from RESQ – designed and developed for easy use with intuitive functions.
The RPX can handle most rescue scenarios in various industries and extreme environments, from evacuation from high heights, lifting from deep shafts to advanced rescues, the height worker can feel confident that the equipment performance is verified.

The design and functionality of the device are based on insights from professionals working at heights daily. RPX is designed to give height workers verified confidence in extreme environments and for easy implementation of user-training and inspections.

Single-sided use for safe handling - all features on frontside - no more losing valuable time, twisting and turning the device to double-check. Universal power tool-interface for heavy lifting, up to 255m. Top-mounted swivel for optimal positioning, even in tight conditions and confined space. Laser printed, easy to read data and pictograms, engraved direct and permanently on the body. 280 kg – 255m verified and tested decent weight and height!

The device comes with a lifting function where the connection of machine-driven accessories simplifies and facilitates lifting at longer distances as standard. With the help of a power tool, the equipment can lift a load of 140 kg at a distance of 255 meters.

RPX requires a minimum of training which equals Low TCO for maintenance of training certificates for your workforce. Due to the easily recognizable and intuitive design on both rescue equipment and accessories, the kit is both practical and cost-efficient to introduce to already trained workforce which holds GWO or similar height training certificate.

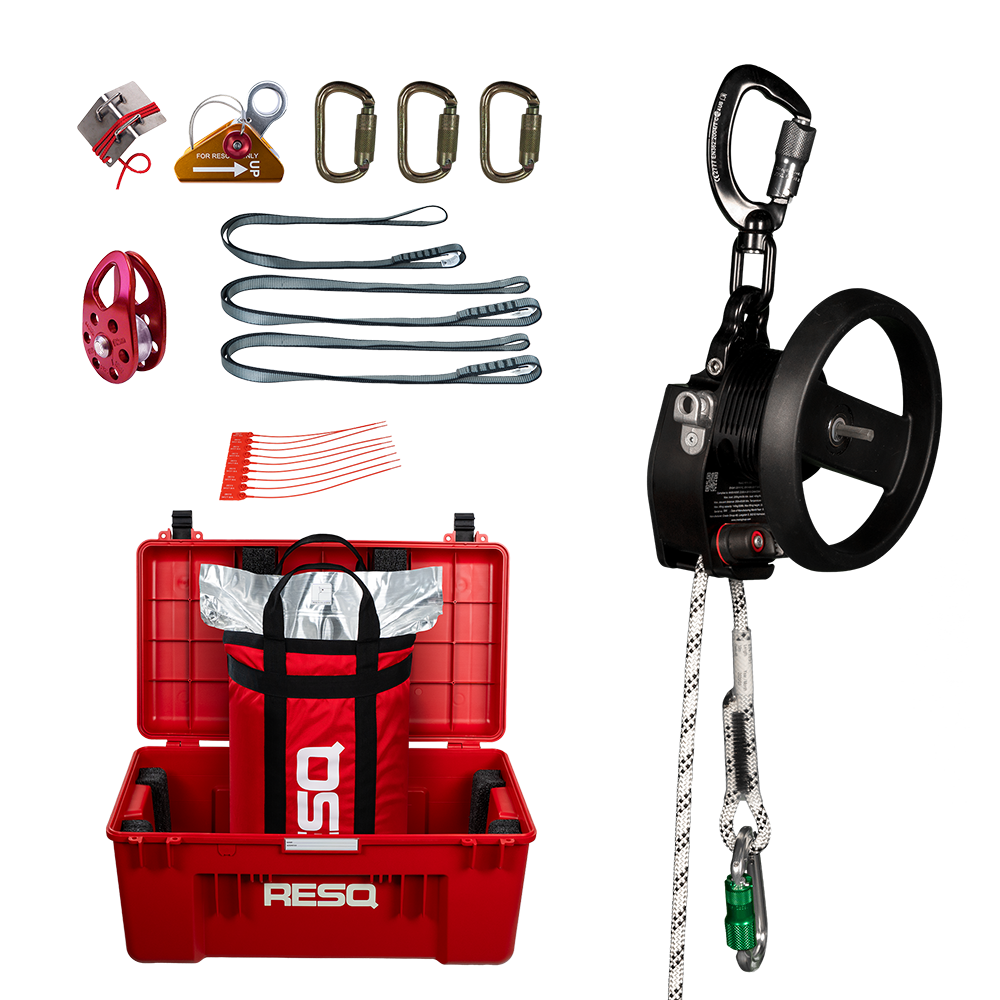

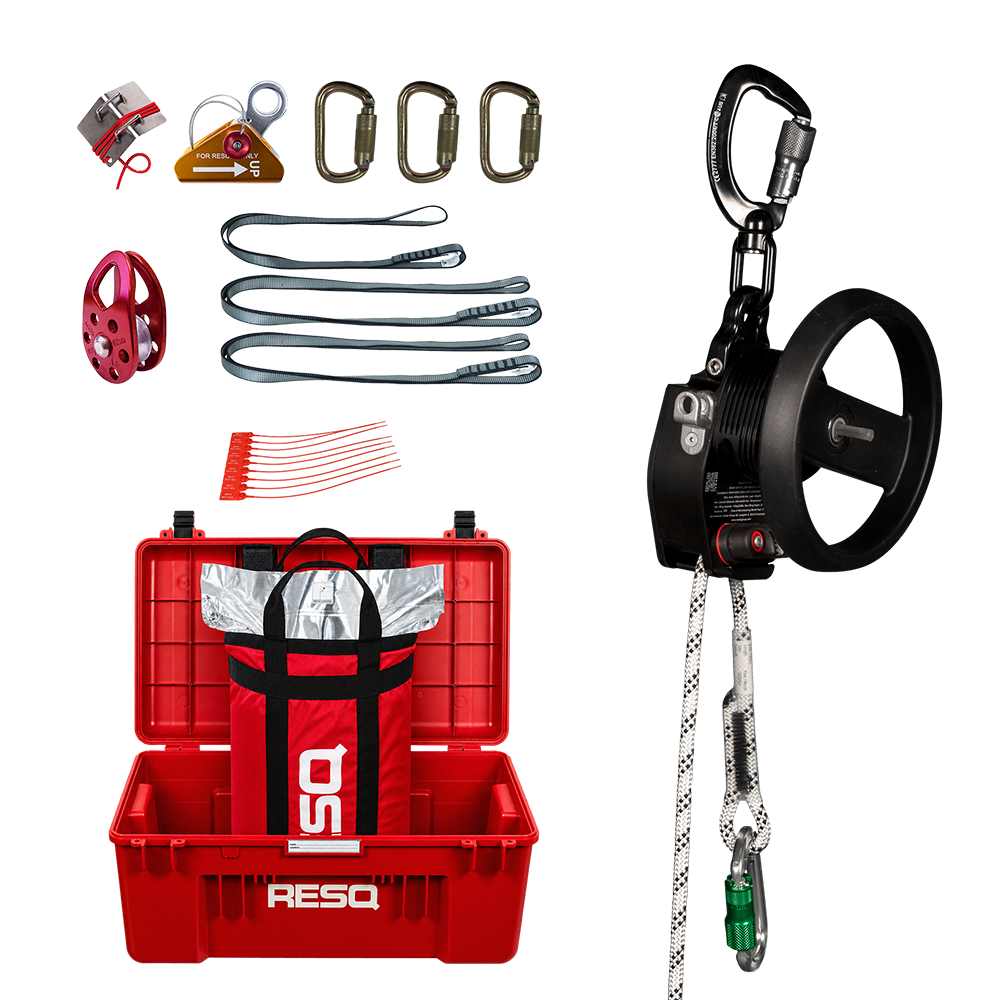

RPX Original is delivered as a complete set in RESQ Vacuum (service interval of 10 years), storage box in plastic and accessory kit.

Material shortages due to the pandemic have resulted in the need for Cresto Group to periodically and temporarily replace certain components on our products with replacement components fulfilling the same function. Due to this, the product images may differ from that which is delivered.

Items

Reference
Article name
Size (m)
Colors
GTIN
Country of origin
087003212050 RESQ, RPX200 Original, 50m, box, vacuum, accs. 50 BLACK 7350015799158 Slovakia
087003212075 RESQ, RPX200 Original, 75m, box, vacuum, accs. 75 BLACK 7350015799165 Slovakia
087003212083 RESQ, RPX200 Original, 83m, box, vacuum, accs. 83 BLACK 7350015799400 Slovakia
087003212090 RESQ, RPX200 Original, 90m, box, vacuum, accs. 90 BLACK 7350015799417 Slovakia
087003212100 RESQ, RPX200 Original, 100m, box, vacuum, accs. 100 BLACK 7350015799172 Slovakia
087003212105 RESQ, RPX200 Original, 105m, box, vacuum, accs. 105 BLACK 7350015799424 Slovakia
087003212125 RESQ, RPX200 Original, 125m, box, vacuum, accs. 125 BLACK 7350015799189 Slovakia
087003212140 RESQ, RPX200 Original, 140m, box, vacuum ,accs. 140 BLACK 7350015799431 Slovakia
087003212150 RESQ, RPX200 Original, 150m, box, vacuum, accs. 150 BLACK 7350015799196 Slovakia
087003213160 RESQ, RPX200 Original, 160m, box, vacuum, accs. 160 BLACK 7350015799448 Slovakia
087003223175 RESQ, RPX200 Original, 175m, box, vacuum, accs. 175 BLACK 7350015799202 Slovakia
087003223180 RESQ, RPX200 Original, 180m, box, vacuum, accs. 180 BLACK 7350015799455 Sweden
087003223200 RESQ, RPX200 Original, 200m, box, vacuum, accs. 200 BLACK 7350015799219 Slovakia

Technical data

Product properties
ProductMinMaxStorageTemperature: -40/+60 °C
Brand: RESQ
Material: Polyamide, Aluminum , Techno polymers
Min/Max load (kg): 40/280
Minimum load (kg): 40
Maximum load (kg): 200
Maximum number of users: 2
Min/Max working temperature (c): -40/+60 °C
EN-standard: EN 341 : 2011, EN 1496 : 2017
Other standards: ANSI Z359.4-2013, CSA Z259.2.3-12
Notified body: 0200, FORCE Certification A/S, Main office, Park Allé 345, DK-2605 Brondby, Denmark
Annual inspection: Yes, every 12 months
Life span: 10 + 10 years. Product lifecycle 10 years + 10 years after service
RFID: Yes
Warranty: 2 year
Declaration of Conformity: Yes
Rope: Polyamide/polyamide 32-braided kermantel construction 9,6mm
Maximum rope length (m): 255
Fall indicator: No
Maximum descent: 255m
Descent speed (m/s): 0,9-1,6
Minimum breaking strength - MBS (kN): 20
Energy absorber: No
Gate feature: tri lock
Gate strength (kN): 16
Attaching connector 1: Device: Aluminum carabiner with swivel
Attaching connector 2: Rope: Aluminum carabiner
Functions: Descend function, Lifting function
Extra functions: Lift with external power source
Mechanics: Centrifugal brake
Lifting mechanics: Gear, ratio 1:9
Adjustable under load: Yes

Product attachments

  • 2565_RED_PRO_X_Original_en.pdf
  • 2565_RED_PRO_X_Original_no.pdf
  • 2565_RED_PRO_X_Original_sv.pdf
  • RED Pro X and ED Pro - EU 20200311.pdf
  • RESQ Vacuum solutions - version 1.pdf
  • RESQ Vacuum solutions - version 2.pdf
  • RESQ Vacuum solutions - version 3.pdf
  • RESQ Vacuum solutions - version 5.pdf
  • RESQ Vacuum solutions - version 6.pdf
  • RPX200 & EPX200 - EU 20220421.pdf
  • RPX200 & EPX200 - version 1.pdf
  • RPX200 & EPX200 - version 2.pdf
