Cresto Safety

Smartline X Ultra

Evacuation equipment

Product number: 1203

One of the worlds smallest evacuation device on the market with a remarkable capacity of 140 kg user weight and 200 meter descent distance.

Compact size

Lightweight

Big capacity

Standards
EN 341 : 2011

Quantity:

Find reseller

Product description

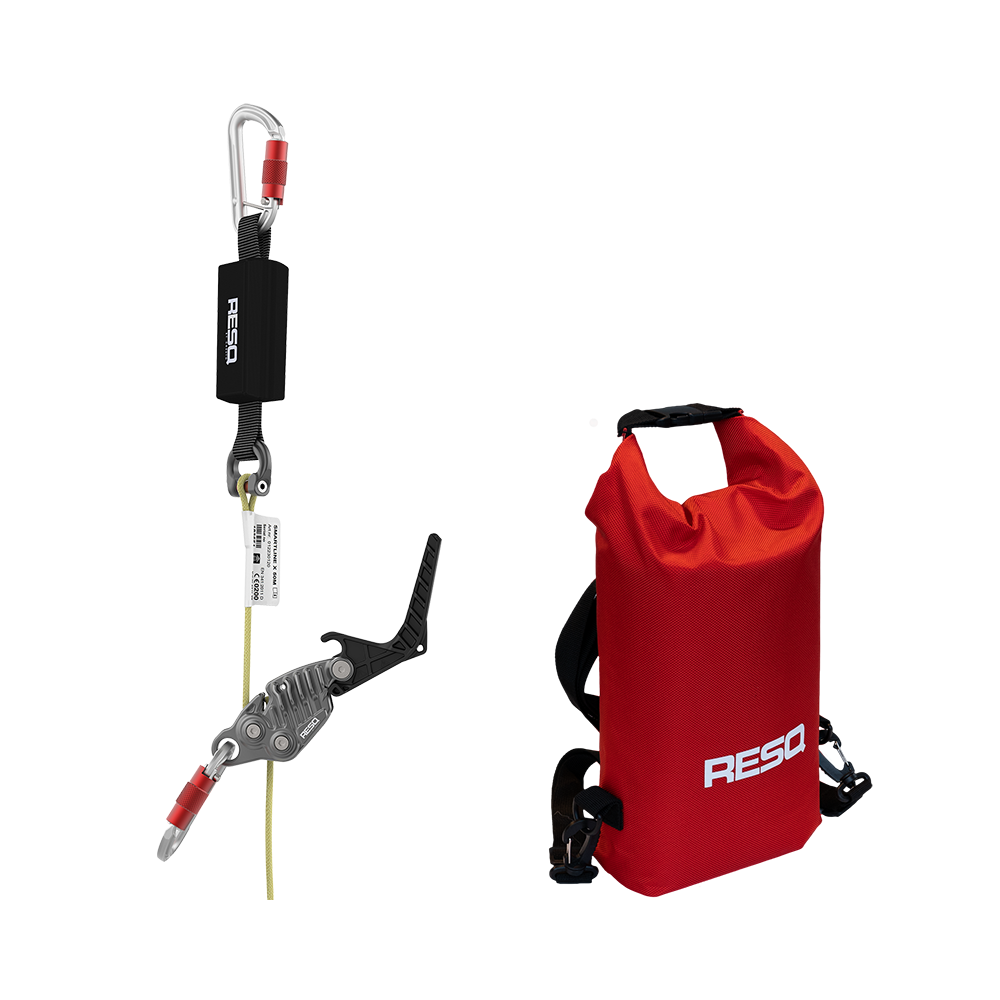

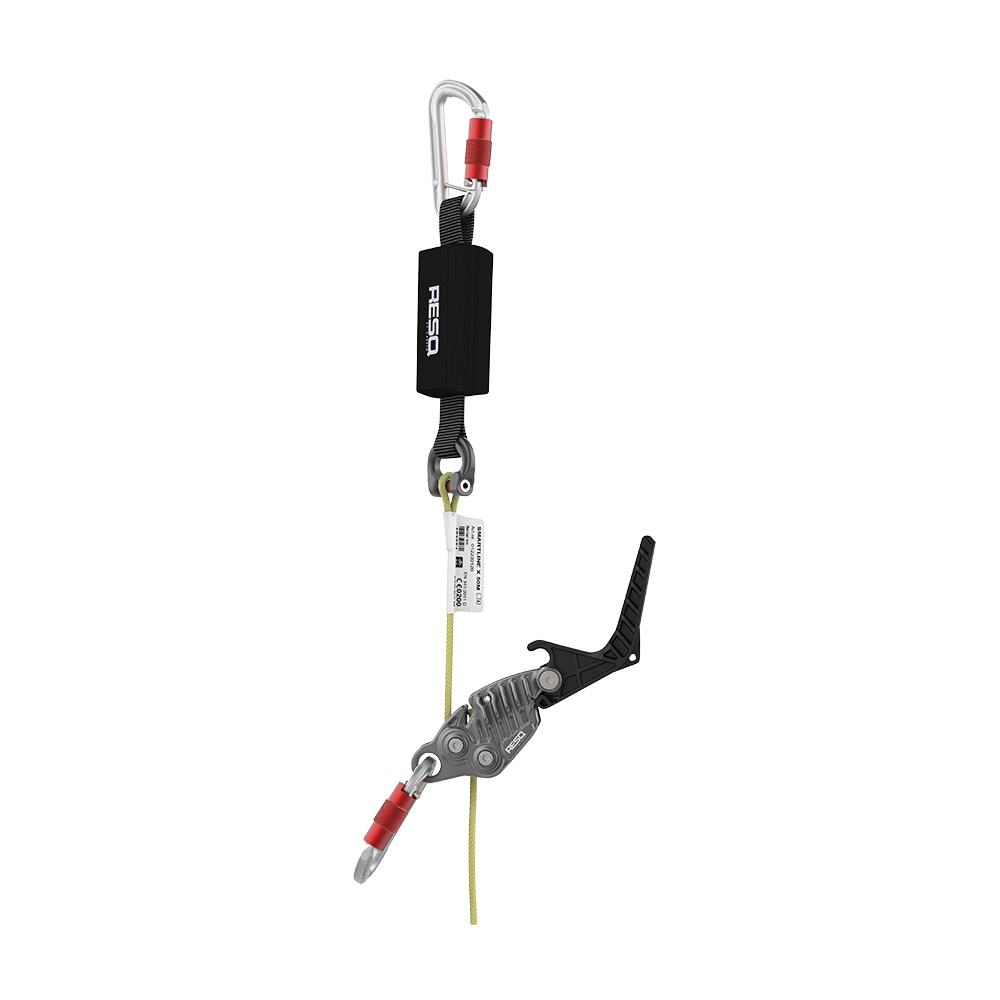

RESQ Smartline X is in its class the smallest and lightest personal evacuation equipment to its high capacity and size. With a maximum load of 140 kg, maximum descent distance of 200 meters and a total weight of 3.8 kg (200 m), Smartline X becomes unique.

With weights from 2 to 3,8 kg, it's easy to carry the equipment attached to the harness to ensure availability in an emergency, wherever you are in the elevated workplace.

The Aramid rope has an incredible strength to diameter ratio and has heat resistance over 480 C. Smartline X can even be suitable where the sudden fire appears.

Material shortages due to the pandemic have resulted in the need for Cresto Group to periodically and temporarily replace certain components on our products with replacement components fulfilling the same function. Due to this, the product images may differ from that which is delivered.

Items

Reference
Article name
Size (m)
Colors
GTIN
Country of origin
012230120 RESQ, Smartline X Ultra, 50m 50 RED 7350015797611 Slovakia
012230125 RESQ, Smartline X Ultra, 75m 75 RED 7350015797949 Slovakia
012230121 RESQ, Smartline X Ultra, 100m 100 RED 7350015797628 Slovakia
012230122 RESQ, Smartline X Ultra, 125m 125 RED 7350015797635 Slovakia
012230123 RESQ, Smartline X Ultra, 150m 150 RED 7350015797642 Slovakia
012230124 RESQ, Smartline X Ultra, 200m 200 RED 7350015797659 Slovakia

Technical data

Product properties
Brand: RESQ
Material: Aluminum , Nylon, Aramid
Minimum load (kg): 60
Maximum load (kg): 140
Maximum number of users: 1
Minimum working temperature (c): -25
Maximum working temperature (c): 50
EN-standard: EN 341 : 2011
Notified body: 0200, FORCE Certification A/S, Main office, Park Allé 345, DK-2605 Brondby, Denmark
Annual inspection: Yes, every 12 months
Life span: 7 years
RFID: Yes
Warranty: 2 year
Declaration of Conformity: Yes
Rope: Aramid 5,5 mm, 16 twill braid coreless construction
Maximum rope length (m): 200
Maximum descent: 200 meter
Descent speed (m/s): 0,5-2m/s
Energy absorber: Yes
Gate opening (mm): 20
Attaching connector 1: Device: Aluminum carabiner tri-lock
Attaching connector 2: Rope/Absorber: Aluminum carabiner tri-lock
Functions: Descend function

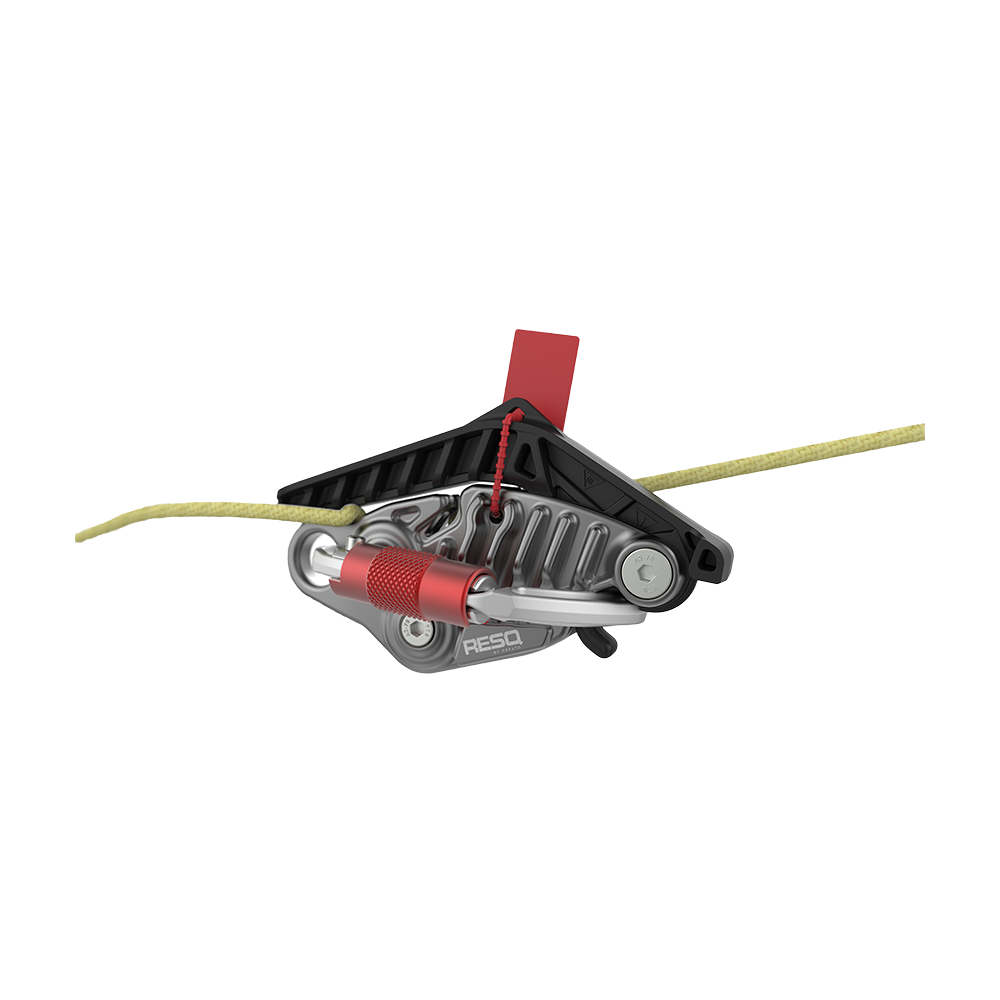

Mechanics: Friction brake
Lifting mechanics: Method 1:3
Adjustable under load: Yes

Product attachments

  • Instructions for use RESQ bag.pdf
  • Smartline X -Declaration of Conformity - EU 20190421.pdf
  • Smartline X - EC 20171010.pdf
  • Smartline X - EU 20220421.pdf
  • Smartline X - version 1.2.pdf
  • Smartline X - version 1.pdf
  • Smartline X - version 2.pdf
  • Smartline X - version 3.pdf
